Microsoft Teams
The MS Teams communication extension provides a bot which can be triggered from Microsoft Teams to request information from the i-net HelpDesk server. The bot is connected using Outgoing Webhooks. Incoming Webhooks, provided by Microsoft Teams, can be set up for usage with the task planner - to send status or notification messages.
Outgoing Webhooks
The Microsoft Teams bot allows to request information from the i-net HelpDesk server. The list of available commands is returned if the bot is triggered without a specific command - e.g. using @botname
.
Note: For connecting the i-net HelpDesk server with a Microsoft Teams outgoing webhook it is required that at least the server context /bot/msteams
is publicly available. For testing purposes you can use ngrok
.
The process of creating a bot connection is described here in addition to the support document by Microsoft:
-
Login to Microsoft Teams
-

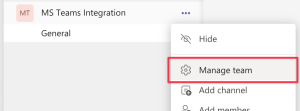

Select "Manage Team" from the three-dot-menu of your team
-

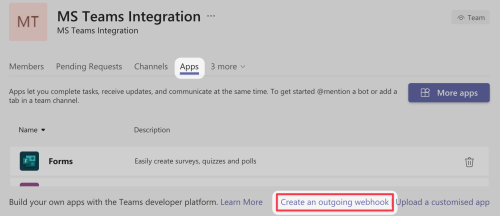

Select "App" and then "Create an outgoing webhook"
-
Fill in the requested information. It depends on how your server is available from the internet, which address to enter. In general it will be:
https://your-server.com/bot/msteams
. You should check, that this address is available from the internet beforehand or the bot registration will fail.-
Note: It is possible to modify the URL later if it changes.
-
-
Select "Create". If successful you will be presented a secret token that has to be entered in the i-net HelpDesk server.
-
Go to the Users and Groups Manager and select the user that you want the webhook to use and grant access for. The user does not need a login entry.
-
Make sure, that the user has the Token Authentication. If newly added you have Save and re-open the user settings dialog
-
Check other required permissions for the user which may be used by the bot
-
Select the Access Tokens panel and add an HMAC Token entry
-
Paste the secret token
-
Check the permissions the respective components
-
Incoming Webhook
A Webhook is an alternative way of sending information to MS Teams. Webhooks are used, e.g. by the Task Planner to send notification messages to a given channel.
The configuration of incoming webhooks allows to have them re-used at various places and by the users. A web hook is created by a server administrator in Microsoft Teams.
-

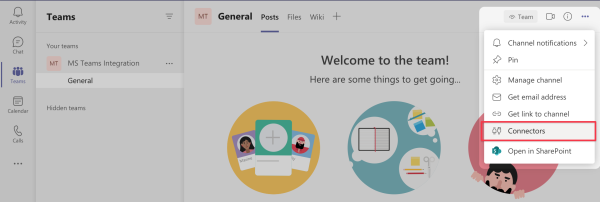

Select "Connectors" from the three-dot-menu of a channel
-

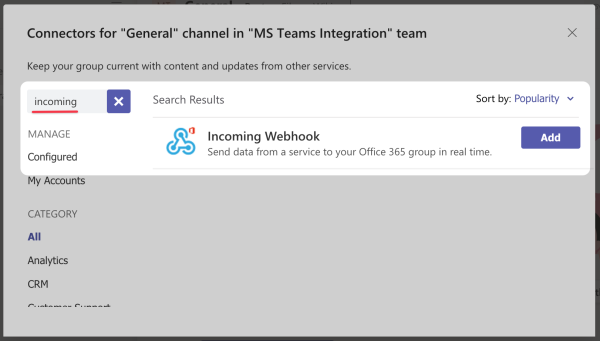

Search for
incoming
in the panel and select "Add" -
Configure the webhook with an icon and name in the same panel and select "Create" at the end
-

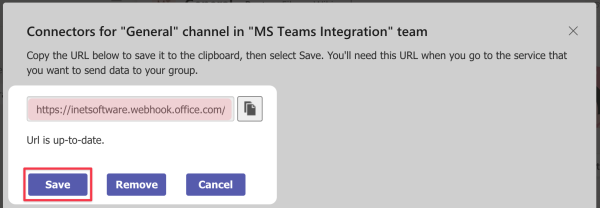

After the webhook was created, copy the displayed webhook URL. It has to be added to the i-net HelpDesk server configuration.
