Connecting to Dropbox
An authenticated connection to Dropbox is required in order to access files from Dropbox. This guide is a walk-through to establish an OAuth application connection, based up on the Dropbox interface in the year 2022.
Prerequisite
The following prerequisites must be fulfilled for a successful connection to the Dropbox authentication service:
-
The i-net HelpDesk server must be secured with HTTPS
-
The i-net HelpDesk server and browser client must be able to reach https://www.dropbox.com/oauth2/authorize
-
You have to be authorized to create an APP at https://www.dropbox.com/developers/apps
-
The OAuth approval screen must be set and published correctly.
Creating a Dropbox App
You are about to create a Dropbox login now. This login will provide the authentication credentials for the OAuth connection we want to add to i-net HelpDesk.
-
Go to https://www.dropbox.com/developers/apps and log in.
-

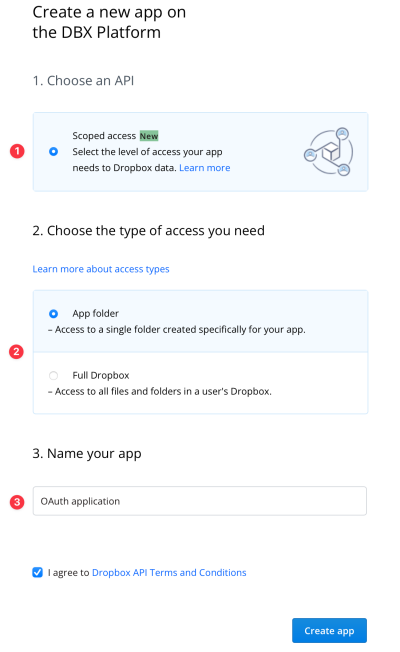

Select
Create App
from the overview to start with a new App. -
Select
Scoped Access
from theChoose an API
section. -
Select the appropriate scope from the
Choose the type of access you need
section. -
Enter an application name in the
Name your app
section. -
Aggree to the terms and click the
Create App
button.
OAuth application configuration
The OAuth application configuration is displayed and requires further custom settings, depending on your environment. You have to take note of the following settings in the overview:
-
Copy & Paste the
App key
into the Client ID field of the OAuth Connection dialog in the i-net HelpDesk configuration -
Copy & Paste the
App secret
into the Secret ID field of the OAuth Connection dialog in the i-net HelpDesk configuration -
Copy & Paste the
Redirect URL
from the OAuth Connection dialog into theOAuth 2 Redirect URIs
Note: The Secret ID is considered a password, so please keep it in a safe place.
