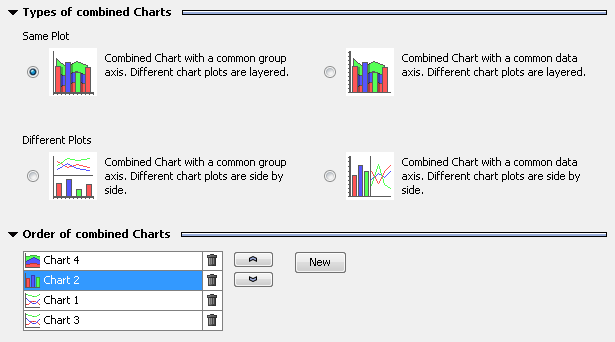

Combined charts will be painted in the same plot. Each chart is a new layer in this plot.

Each chart being combined will be painted in its own separate plot. All plots will be painted side by side.

Click on the New button to create a combined chart.

You can only create two kinds of combined charts: discrete or continuous. The discrete charts are: Bar 2D (normal, stacked and percentage), Line (all styles), and Area 2D (stacked and percentage). Any continuous chart style may be taken for continuous combined charts. Note that all combined charts should have the same rotation.
With the two arrows, you can change the drawing-order of the selected chart plot.
With a click on the trash icon you can delete a chart plot. Note that this action can not be undone.

Using these tabs, you can switch between the different charts.

Note: Not all options are available for each sub chart. Selecting the first of the combined charts will allow you to change the options for all charts at the same time.
