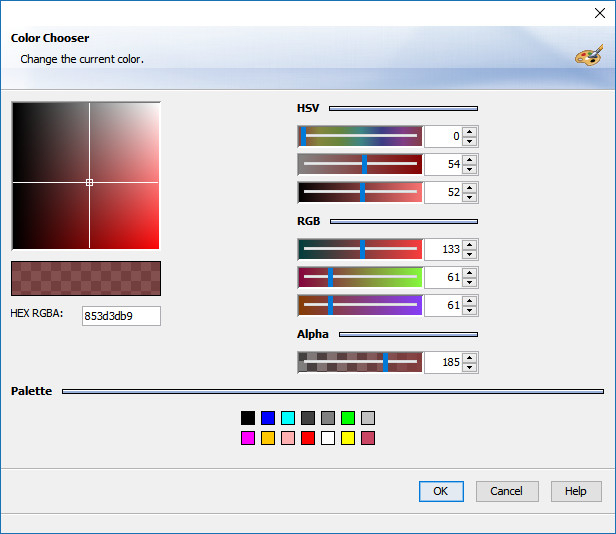

The Color Chooser
The color chooser allows you to create custom colors and use them as in your report elements. To create a custom color use the slider to change the current color. Also, you can enter the value of the color component in the fields next to the slider.
Color Components:
-
(HSV) Hue (0-360): The color angle in HSV model.
-
(HSV) Saturation (0-100) The saturation of the current color.
-
(HSV) Value (0-100) The value of the current color.
-
(RGB) Red (0-255) : the red component of the current color
-
(RGB) Green (0-255) : the green component of the current color
-
(RGB) Blue (0-255) : the blue component of the current color
-
Alpha (0-255) : The opacity of the selected color
HTML Code:
Shows the current color in hexadecimal code. Please note: the alpha value will not be showed in this representation.
Palette:
Shows the standard and currently used palette from i-net Designer.
