Summary Field

A summary field aggregates the instances of another field (e.g. a database field or formula field) by calling a summary function.

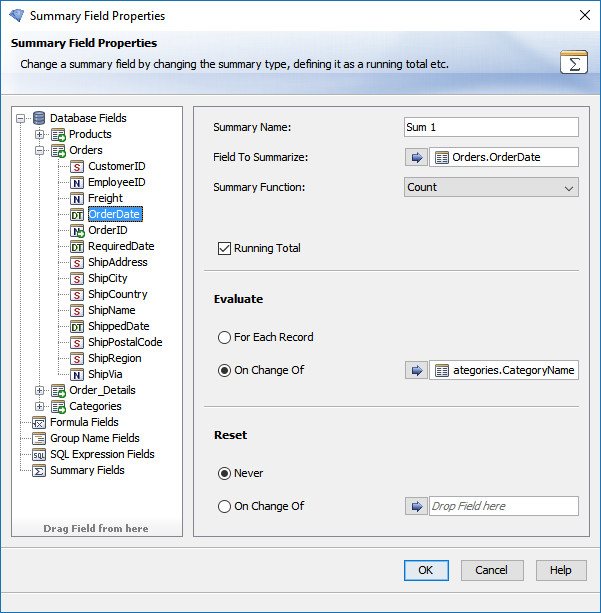

The "Summary Field Properties" dialog helps you to create a summary/running total field.

summary field properties

To create a new summary field, select the node "Summary Fields" in the field browser tree and click on the new button of the fields browser.
Each summary field has to have a unique name. Enter the name in the "Summary Name" field, for example "Sum of <field name>", the "Field to Summarize" and the "Summary Function" itself.

To edit an already existing summary field, click on the summary field in the fields browser and then on the edit button.

Summary

In the upper part of the dialog you can choose the (database or formula) field on which the summary function should operate as well as the summary function itself.

summary function

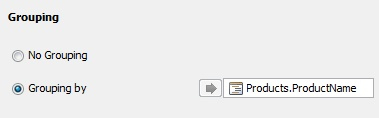

Grouping

If you do not want to call the summary function for each record, then aggregate it by using Group by (below you can see the list of valid conditions).

summary grouping

The default mode is to summarize the data of all rows or by a group. To group the summary field you need to add a group name field into the "Grouping by" field.

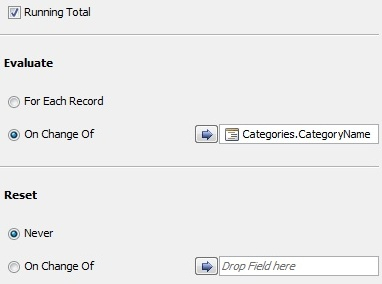

Running Total

Another option is to choose the "Running Total" option on a summary field. By clicking on the "Running Total" check box, the summary field will be forced to be evaluated for every row of the report.
If you want a running total field, please check the "Running Total" check box and enter the condition on which the summary value should be reset. Below you can see the list of valid conditions.

Evaluate on change of

Running total summary fields can have conditions when to evaluate it's value. Below you can see valid conditions for "Evaluate on change of".

Reset on change of

Running total summary fields can have conditions when to reset it's value. Below you can see valid conditions for "Reset on change of".

summary running total

Conditions for "Grouping", "Evaluate on change of" and "Reset on change of"

  Condition Effect
  none "for each record" if used as "evaluate on change of"
"never" if used as "reset on change of"
a database field "on change of the field value"
a group field "on change of a group field"
a formula field with result type boolean "whenever the result of the formula is true"
a non-boolean formula field "whenever the result of the formula changes"
